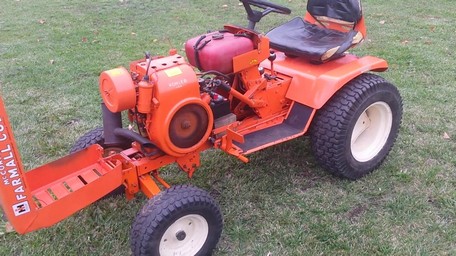

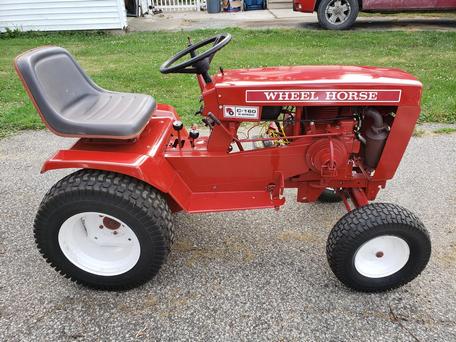

Wheel Horse C-160

Production: 1974 - 1977
Type: Garden Tractors

Contents:

Production

ManufacturerWheel Horse
TypeGarden tractor
FactorySouth Bend, Indiana, USA

Mechanical

Chassis4x2 2WD
Steeringmanual
CabOpen operator station.

Electrical

Groundnegative
Battery volts12

Engine Detail

Tecumseh HH160
gasoline
1-cylinder
air-cooled
Displacement453 cc 27.66 ci
Bore/Stroke3.5x2.875 inches 89 x 73 mm
Power16 hp 11.9 kW
Rated RPM3600
Starter volts12
Oil capacity2 qts 1.9 L

Transmission

TransmissionWheel Horse belt-driven gear
Gears6 forward and 2 reverse
Oil capacity2 qts 1.9 L

Dimensions

Wheelbase45.5 inches 115 cm
Length65 inches 165 cm
Width36 inches 91 cm
Height41 inches 104 cm
Gear Weight600 lbs 272 kg
Hydro Weight640 lbs 290 kg
