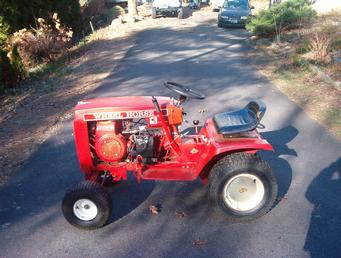

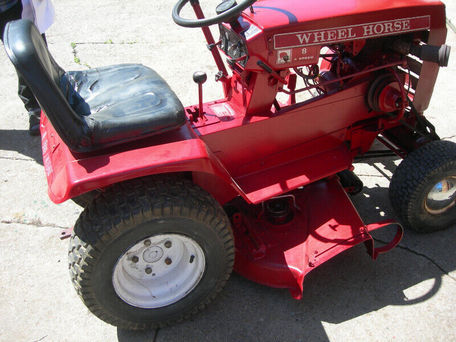

Wheel Horse 8HP 4-Speed

Production: 1973
Type: Garden Tractors

Contents:

Production

ManufacturerWheel Horse
TypeGarden tractor
FactorySouth Bend, Indiana, USA

Variants

4-speed Kohler
4-speed Techumseh
4-speed Techumseh
8-speed Kohler

Mechanical

Chassis4x2 2WD
Steeringmanual
CabOpen operator station.

8HP 4-Speed Serial Location

Electrical

Groundnegative
Battery volts12

Engine Detail

Tecumseh V80
gasoline
1-cylinder
air-cooled
Displacement305 cc 18.65 ci
Bore/Stroke3.0625x2.531 inches 78 x 64 mm
Power8 hp 6.0 kW
Rated RPM3600
Starter volts12
Oil capacity1 qts 0.9 L

Transmission

TransmissionWheel Horse
Typebelt-driven gear
Gears3 forward and 1 reverse
Oil capacity2 qts 1.9 L

Dimensions

Wheelbase43.5 inches 110 cm
Length60 inches 152 cm
Width33 inches 83 cm
Height (steering wheel)39 inches 99 cm
Height (hood)33 inches 83 cm
Shiping weight570 lbs 258 kg
Ground clearance5.125 inches 13 cm
