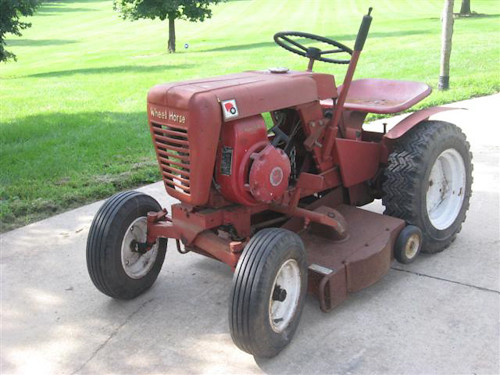

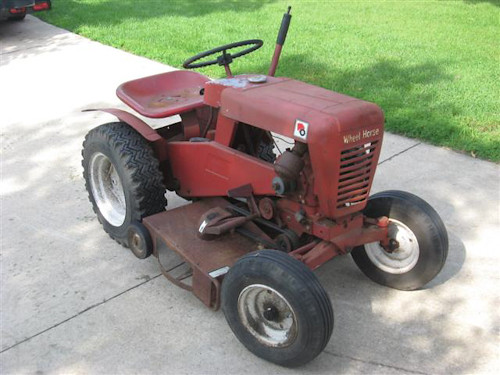

Wheel Horse 633

Production: 1963

Production
Manufacturer:	Wheel Horse
Type:	Garden tractor
Factory:	South Bend, Indiana, USA

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Cab:	Open operator station.
Transmission:	3-speed gear

Capacity
Fuel:	1 gal 3.8 L

Engine Detail
Kohler K141
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement:	265 cc 16.2 ci
Bore/Stroke:	2.875x2.5 inches 73 x 64 mm
Power:	6 hp 4.5 kW
Rated RPM:	3600
Starter type:	manual recoil

Transmission
Transmission:	Uni-Drive
Type:	belt-driven gear
Gears:	3 forward and 1 reverse

Dimensions
Wheelbase:	41.25 inches 104 cm
Length:	61 inches 154 cm
Width:	32 inches 81 cm
Height (steering wheel):	36.5 inches 92 cm
Height (hood):	31.5 inches 80 cm
Weight:	381 lbs 172 kg
Ground clearance:	7.25 inches 18 cm
