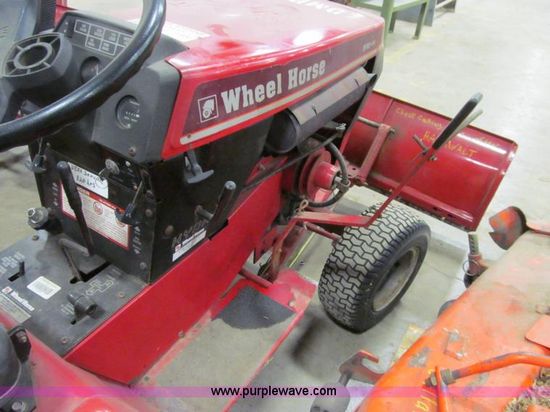

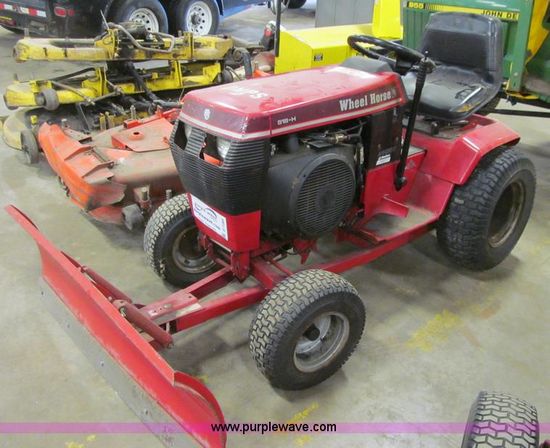

Wheel Horse 518-H

Production: 1988 - 1989
Type: Garden Tractors

Contents:

Production

Manufacturer:Wheel Horse (a part of Toro)
Type:Garden tractor
Factory:South Bend, Indiana, USA

Mechanical

Chassis:4x2 2WD
Steering:manual
Brakes:mechanical band
Cab:Open operator station.
Transmission:hydrostatic

Capacity

Fuel:3 gal 11.4 L

Power Take-off (PTO)

Mid PTO:independent
Clutch:mechanical

518-H Serial Numbers

Location:Serial number plate on the rear fender, below the seat.

Electrical

Ground:negative
Charging amps:20

Engine Detail

Onan P218G
gasoline
2-cylinder
air-cooled horizontal-shaft opposed twin
Displacement:781 cc 47.7 ci
Bore/Stroke:3.25x2.88 inches 83 x 73 mm
Power:18 hp 13.4 kW
Starter volts:12

Transmission

Transmission:Eaton 700
Type:belt-driven hydrostatic
Gears:infinite forward and reverse

Dimensions

Wheelbase:45.5 inches 115 cm
Length:65 inches 165 cm
Width:38 inches 96 cm
Height:41.6 inches 105 cm
