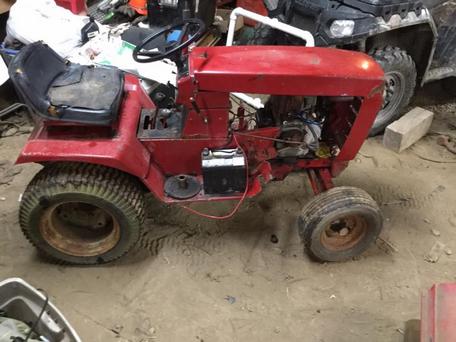

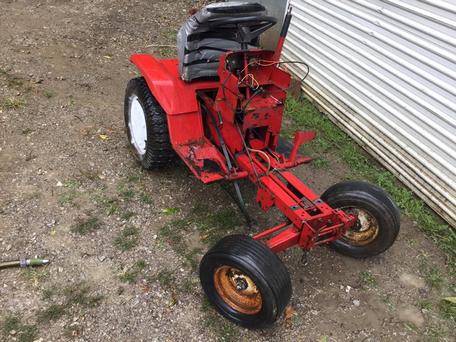

Wheel Horse 1100 Special

Production: 1980

Production
Manufacturer:	Wheel Horse
Type:	Garden tractor
Factory:	South Bend, Indiana, USA

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Cab:	Open operator station.
Transmission:	6-speed gear

Capacity
Fuel:	3 gal 11.4 L

Power Take-off (PTO)
Mid PTO:	independent
Clutch:	manual

Electrical
Ground:	negative
Charging amps:	3

Engine Detail
Briggs & Stratton 252417
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement:	399 cc 24.36 ci
Bore/Stroke:	3.438x2.625 inches 87 x 67 mm
Power:	11 hp 8.2 kW
Rated RPM:	3600
Starter volts:	12
Oil capacity:	1.5 qts 1.4 L

Transmission
Manufacturer:	Wheel Horse
Type:	belt-driven gear
Gears:	6 forward and 2 reverse
Oil capacity:	2 qts 1.9 L

Dimensions
Wheelbase:	45.5 inches 115 cm
Length:	65 inches 165 cm
Width:	36 inches 91 cm
Height:	41 inches 104 cm
Weight:	560 lbs 254 kg
