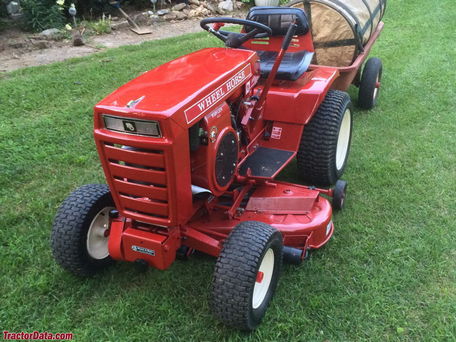

Wheel Horse 10HP
Type: Garden Tractors
Contents:
10HP Serial Location | |
| Serial number plate on the left side of the Wheel Horse 10, below the dash support. |
Electrical | |
| Ground | negative |
| Battery volts | 12 |
Engine Detail | |
| Kohler K241AS | |
| gasoline | |
| 1-cylinder | |
| air-cooled horizontal-shaft | |
| Displacement | 391 cc 23.9 ci |
| Bore/Stroke | 3.25x2.88 inches 83 x 73 mm |
| Power | 10 hp 7.5 kW |
| Rated RPM | 3600 |
| Starter volts | 12 |
| Oil capacity | 1.5 qts 1.4 L |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Point gap | 0.020 inches 0.508 mm |
Dimensions | |
| Wheelbase | 45.5 inches 115 cm |
| Length | 65 inches 165 cm |
| Width | 36 inches 91 cm |
| Height (steering wheel) | 39 inches 99 cm |
| Height (hood) | 35 inches 88 cm |
| Shiping weight | 625 lbs 283 kg |
| Ground clearance | 6.75 inches 17 cm |
