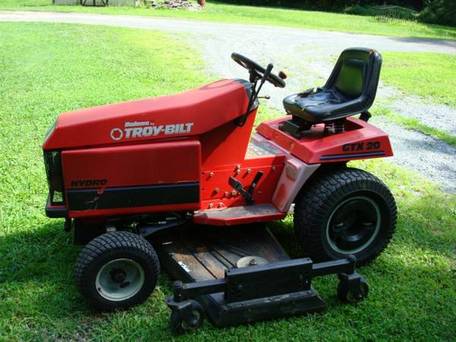

Troy-Bilt GTX 20
Type: Garden Tractors
Contents:
Production | |
| Manufacturer: | Troy-Bilt |
| Type: | Garden tractor |
| Factory: | Port Washington, Wisconsin, USA |
| Original price: | $7,000 (2000 ) |
| The Troy-Bilt GTX 18 carried model numbers 13062 (early) and 13076 (late). | |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | power |
| Cab: | Open operator station. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 4.3 gal 16.3 L |
Tractor hitch | |
| Rear Type: | 0*Optional |
| Type: | sleeve hitch*Optional |
Power Take-off (PTO) | |
| Mid PTO: | independent |
| Clutch: | electric |
GTX 20 Serial Numbers | |
| Location: | Serial number plate on the rear fender deck, below the seat. |
Electrical | |
| Ground: | negative |
Engine Detail | |
| Kohler M20QS | |
| gasoline | |
| 2-cylinder | |
| air-cooled horizontal-shaft | |
| Displacement: | 770 cc 46.98 ci |
| Bore/Stroke: | 3.12x3.06 inches 79 x 78 mm |
| Power: | 20 hp 14.9 kW |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 1.75 qts 1.7 L |
Transmission | |
| Transmission: | Eaton 11 |
| Type: | shaft-driven hydrostatic |
| Gears: | infinite (2-range) forward and reverse |
Dimensions | |
| Wheelbase: | 49 inches 124 cm |
| Length: | 76.8 inches 195 cm |
| Width: | 38.5 inches 97 cm |
| Height: | 47.8 inches 121 cm |
| Shipping: | 815 lbs 369 kg |
