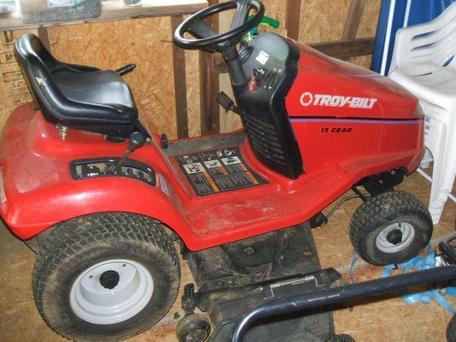

Troy-Bilt 13034 LTX 13
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer: | Troy-Bilt |
| Type: | Lawn tractor |
| Factory: | Port Washington, Wisconsin, USA |
Mechanical | |
| Chassis: | 4x2 2WD |
| Cab: | Open operator station. |
| Transmission: | 5-speed gear |
Capacity | |
| Fuel: | 4 gal 15.1 L |
Power Take-off (PTO) | |
| Mid PTO: | independent |
| Clutch: | electric |
Electrical | |
| Ground: | negative |
Engine Detail | |
| Briggs & Stratton 28M707 | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement: | 465 cc 28.4 ci |
| Bore/Stroke: | 3.44x3.06 inches 87 x 78 mm |
| Power: | 13 hp 9.7 kW |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Transmission: | Peerless 930 |
| Type: | belt-driven gear |
| Gears: | 5 forward and 1 reverse |
Dimensions | |
| Wheelbase: | 48.25 inches 122 cm |
| Length: | 72 inches 182 cm |
| Width: | 35 inches 88 cm |
| Height: | 43 inches 109 cm |
| Shipping: | 383 lbs 173 kg |
| Ground clearance: | 6.25 inches 15 cm |
