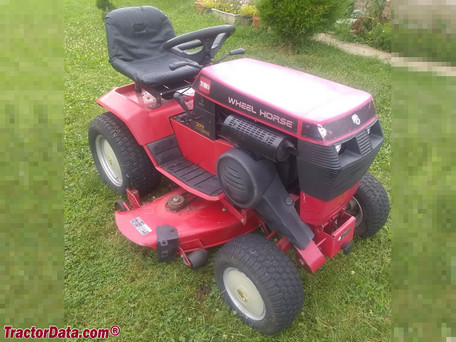

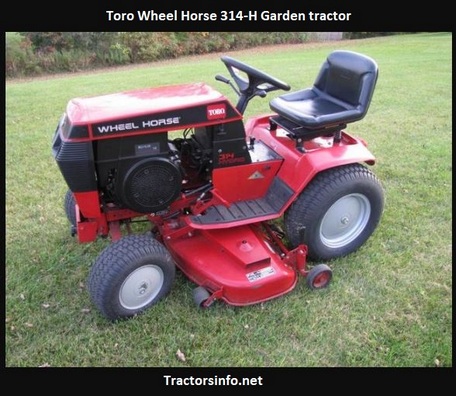

Toro Wheel Horse 314-H
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Toro |
| Type | Garden tractor |
Variants | |
| gear | |
| hydrostatic | |
Mechanical | |
| Chassis | 4x2 2WD |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | manual |
314-H Serial Numbers | |
| Location: | Serial number decal on the tractor's rear fender deck, below the seat. Model codes shown. |
| 1993 | 73401 |
| 1994 | 73401 |
| 1995 | 73401 |
| 1996 | 73401/73403 |
| 1997 | 73403 |
Electrical | |
| Ground | negative |
| Battery volts | 12 |
Engine Detail | |
| Kohler M14S | |
| gasoline | |
| 1-cylinder | |
| air-cooled horizontal-shaft | |
| Displacement | 512 cc 31.27 ci |
| Bore/Stroke | 3.50x3.25 inches 89 x 83 mm |
| Power | 14 hp 10.4 kW |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug | Champion RH-10 |
| Sparkplug gap | 0.025 inches 0.635 mm |
Transmission | |
| Transmission | Eaton |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil type | SAE 10W-30 |
Dimensions | |
| Wheelbase | 45.5 inches 115 cm |
| Length | 65 inches 165 cm |
| Width | 36.5 inches 92 cm |
| Height (steering wheel) | 42.5 inches 107 cm |
| Weight | 622 lbs 282 kg |
