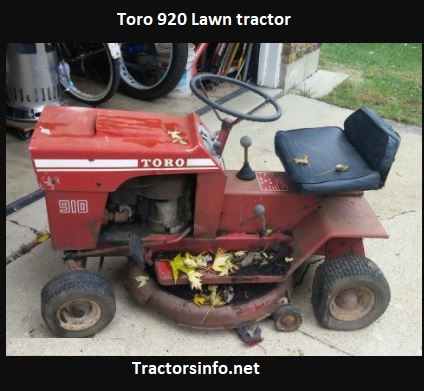

Toro 920 57202
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer | Toro |
| Type | Lawn tractor |
Variants | |
| 57102 | 920 manual start |
| 57202 | 920E electric |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Brakes | mechanical band |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Rear PTO | independent |
920 Serial Numbers | |
| 1969 | 9000001 |
Electrical | |
| Ground | negative |
| Battery volts | 12 |
Engine Detail | |
| Tecumseh V60 | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement | 221 cc 13.53 ci |
| Bore/Stroke | 2.625x2.50 inches 67 x 64 mm |
| Power (gross) | 6 hp 4.5 kW |
| Starter | manual recoil *Toro 920, model code 57102. |
| electric *Toro 920E, model code 57202. | |
| Starter volts | 12 |
Transmission | |
| Transmission | Peerless 352 |
| Type | belt-driven gear |
| Gears | 3 forward and 1 reverse |
| Clutch | idler pulley |
Dimensions | |
| Wheelbase | 39 inches 99 cm |
| Length | 52.5 inches 133 cm |
| Width | 33.5 inches 85 cm |
| Height | 33 inches 83 cm |
| Weight | 260 lbs 117 kg |
| Front tread | 23.5 inches 59 cm |
| Rear tread | 22 inches 55 cm |
