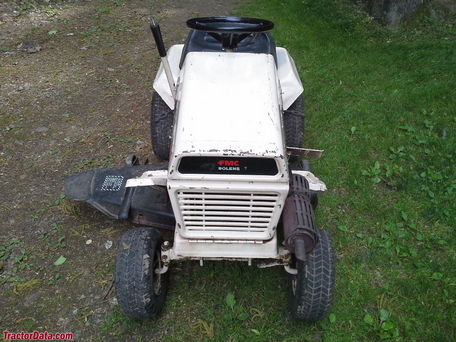

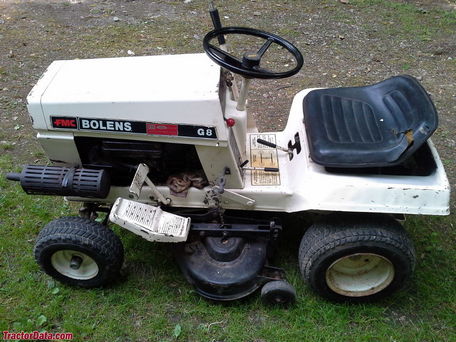

Bolens G-8 813

Production: 1973 - 1978
Type: Lawn Tractors

Contents:

Production

Manufacturer:Bolens
Type:Lawn tractor

Mechanical

Chassis:4x2 2WD
Steering:manual
Brakes:disc
Cab:Open operator station.
Transmission:3-speed gear

Capacity

Fuel:1.5 gal 5.7 L

Power Take-off (PTO)

Front PTO:independent
Clutch:mechanical
Front RPM:3600

Electrical

Ground:negative

Engine Detail

Briggs & Stratton 191707
gasoline
1-cylinder
air-cooled vertical shaft
Displacement:318 cc 19.44 ci
Bore/Stroke:3.00x2.75 inches 76 x 70 mm
Power:8 hp 6.0 kW
Rated RPM:3600
Starter:electric
Starter volts:12

Transmission

Transmission:Peerless
Type:gear
Gears:3 forward and 1 reverse

Dimensions

Wheelbase:40 inches 101 cm
Length:56 inches 142 cm
Width:30 inches 76 cm
Height:3600 inches 9144 cm
Shipping:365 lbs 165 kg
Ground clearance:5 inches 12 cm
