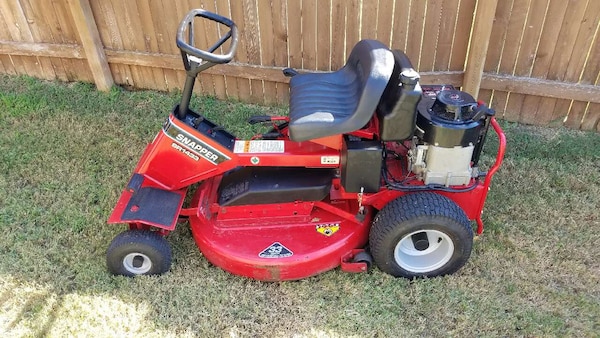

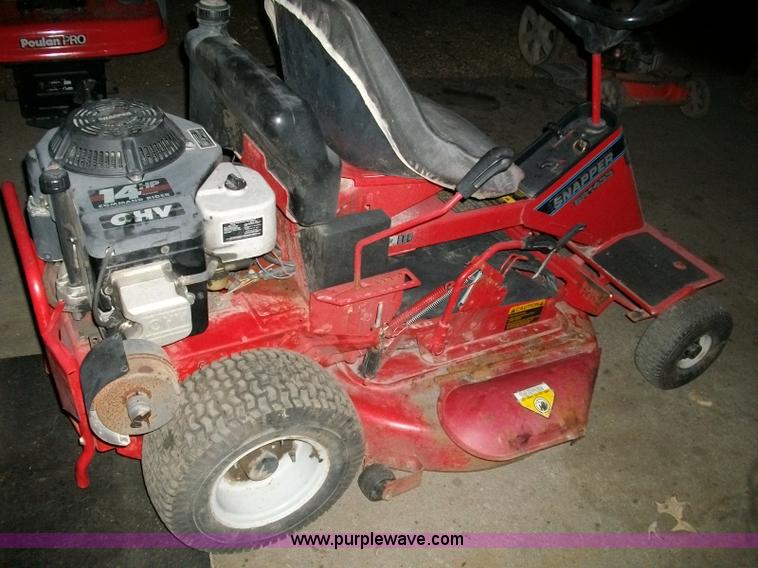

Snapper 331416KVE SR1433

Production: 1997 - 1998

Production
Manufacturer:	Snapper
Type:	Riding lawn mower

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	drum
Cab:	Open operator station.
Transmission:	5-speed friction disc

Capacity
Fuel:	1.75 gal 6.6 L

Power Take-off (PTO)
Mid PTO:	independent
Clutch:	manual

Electrical
Ground:	negative
Charging amps:	3

Engine Detail
Kohler
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement:	398 cc 24.3 ci
Bore/Stroke:	3.43x2.64 inches 87 x 67 mm
Power:	14 hp 10.4 kW
Air cleaner:	dual dry element
Starter:	electric
Starter volts:	12
Oil capacity:	2 qts 1.9 L

Transmission
Type:	friction disc
Gears:	5 forward and 1 reverse

Dimensions
Weight:	379 lbs 171 kg
