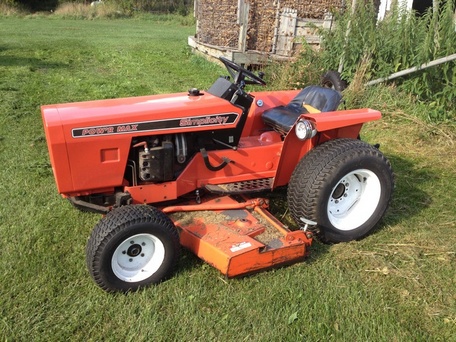

Simplicity 9020 PowrMax
Type: Garden Tractors
Contents:
Production | |
| Manufacturer: | Simplicity |
| Type: | Garden tractor |
| Factory: | Port Washington, Wisconsin, USA |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | disc |
| Cab: | Open operator station. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 3.8 gal 14.4 L |
Hydraulics | |
| Pressure: | 500 psi 34.5 bar |
| Total flow: | 2.5 gpm 9.5 lpm |
Tractor hitch | |
| Rear Type: | 0 |
Power Take-off (PTO) | |
| Rear PTO: | independent |
| Clutch: | electric |
| Rear RPM: | 2000 |
| Front PTO: | independent |
| Clutch: | electric |
| Front RPM: | 3600 |
Electrical | |
| Ground: | negative |
| Charging system: | flywheel alternator |
| Charging amps: | 20 |
| Charging volts: | 12 |
Engine Detail | |
| Onan CCKB | |
| gasoline | |
| 2-cylinder | |
| air-cooled opposed-twin | |
| Displacement: | 816 cc 49.8 ci |
| Bore/Stroke: | 3.25x3.00 inches 83 x 76 mm |
| Power: | 19.5 hp 14.5 kW |
| Air cleaner: | dry |
| Compression: | 7:1 |
| Rated RPM: | 3600 |
| Idle RPM: | 1300-3850 |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 3.5 qts 3.3 L |
| Sparkplug: | Champion H-8 |
| Autolite AL5 | |
| Sparkplug gap: | 0.025 inches 0.635 mm |
| Point gap: | 0.020 inches 0.508 mm |
Transmission | |
| Transmission: | Sundstrand |
| Type: | hydrostatic |
| Gears: | infinite (3-range) forward and reverse |
| Oil capacity: | 6 qts 5.7 L |
Dimensions | |
| Wheelbase: | 56 inches 142 cm |
| Length: | 83 inches 210 cm |
| Width: | 56 inches 142 cm |
| Height (steering wheel): | 48 inches 121 cm |
| Shipping: | 1,300 lbs 589 kg |
| Clearance (front axle): | 15 inches 38 cm |
| Clearance (drawbar): | 13 inches 33 cm |
