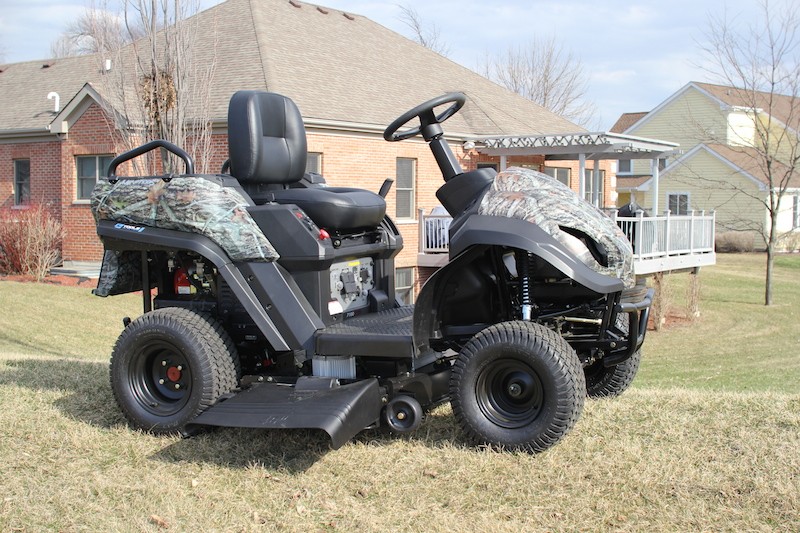

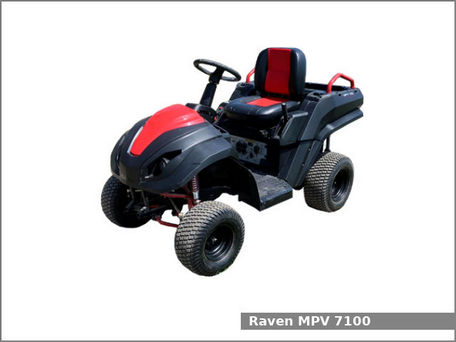

Raven MPV-710
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Raven (a part of RATO) |
| Type | Garden tractor |
| Original price | $2,999 (2013 ) |
| The Raven MPV-710 is a hybrid vehicle using an electric driveline with a gasoline engine to power the generator. The MPV-710 is capable of operating in electric-only mode. At the end of 2013 all Raven MPV-710 models were recalled. | |
Mechanical | |
| Chassis | 4x4 4WD |
| Steering | manual |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric-drive |
Electrical | |
| Ground | negative |
| Charging system | AC generator |
| Watts (rated) | 6500 |
| Watts (max) | 7100 |
| Batteries | 2 |
| Battery volts | 12 (starting) |
| 48 (main) | |
Engine Detail | |
| RATO | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement | 420 cc 25.63 ci |
| Power | 12 hp 8.9 kW |
| Fuel system | carburetor |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug | Torch F7TC |
Transmission | |
| Type | electric-drive |
| Gears | infinite forward and reverse (2-range) |
Dimensions | |
| Wheelbase | 44 inches 111 cm |
| Length | 76 inches 193 cm |
| Height | 50 inches 127 cm |
| Weight | 740 lbs 335 kg |
