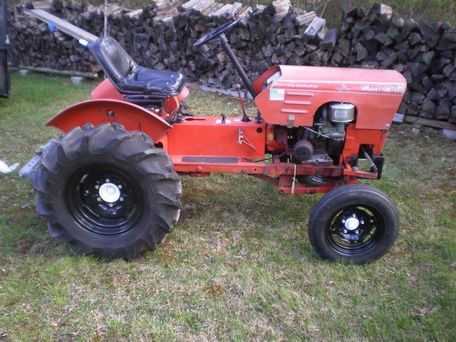

Power King 1616

Production: 1977 - 1983

Production
Manufacturer	Power King (a part of Engineering Products Company)
Type	Garden tractor
Factory	Waukesha, Wisconsin, USA

Mechanical
Chassis	4x2 2WD
Final drives	bull gear
Steering	manual
Brakes	mechanical drum
Cab	Open operator station. Vinyl weather cab optional.

Capacity
Fuel	3 gal 11.4 L
Hydraulic system	5 gal 18.9 L

Hydraulics
Type	open center
Capacity	5 gal 18.9 L
Pressure	1000 psi 69.0 bar
Pump flow	1.7 gpm 6.4 lpm

Tractor hitch
Rear Type	0 OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Clutch	electro-magnetic
Rear RPM	2000
Front PTO	independent
Clutch	electro-magnetic

1616 Serial Numbers
Location:	Serial number decal on tractor dashboard and front of hood.

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	15
Battery volts	12

Engine Detail
Briggs & Stratton 326437
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement	531 cc 32.4 ci
Bore/Stroke	3.5625x3.25 inches 90 x 83 mm
Power	16 hp 11.9 kW
Rated RPM	3600
Torque	25.8 lb-ft 35.0 Nm
Torque RPM	2700
Starter	electric
Starter volts	12

Dimensions
Wheelbase	54.375 inches 138 cm
Length	93 inches 236 cm
Width	44.125 inches (min) 112 cm
Height (steering wheel)	52 inches 132 cm
Height (hood)	40.5 inches 102 cm
Weight	958 lbs (3-speed) 434 kg
975 lbs (4-speed) 442 kg
Ground clearance	16 inches (frame) 40 cm
Front axle	0.75 inch diameter 19 mm
Rear axle	1.5 inch diameter 38 mm
Front tread	35 inches 88 cm
Rear tread	35/40.5 inches 88/102 cm
