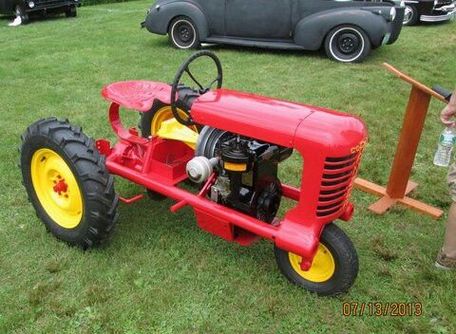

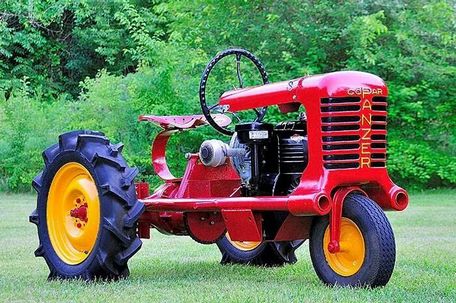

Panzer T102
Type: Garden Tractors
Contents:
Production | |
| Manufacturer: | Panzer (a part of Copar) |
| Type: | Garden tractor |
| Factory: | Laurel, Maryland, USA |
Variants | |
| 3-wheel | |
| 3-wheel deluxe | |
| 4-wheel | |
| 4-wheel deluxe |
Mechanical | |
| Chassis: | 3x2 2WD |
| Steering: | manual |
| Cab: | Open operator station. |
| Transmission: | 1-speed gear |
Engine Detail | |
| Briggs & Stratton 23A | |
| gasoline | |
| 1-cylinder | |
| air-cooled horizontal-shaft | |
| Displacement: | 376 cc 23 ci |
| Bore/Stroke: | 3.00x3.25 inches 76 x 83 mm |
| Power: | 9 hp 6.7 kW |
| Starter type: | manual recoil |
Transmission | |
| Type: | gear |
| Gears: | 1 forward and reverse |
| The Panzer offered three drive ratios by used of three pulleys mounted on the engine. To change ratios, the engine is shut off and the drive belt moved to the desired pulley. | |
Dimensions | |
| Length: | 70 inches 177 cm |
| Width: | 43 inches 109 cm |
| Weight: | 600 lbs 272 kg |
