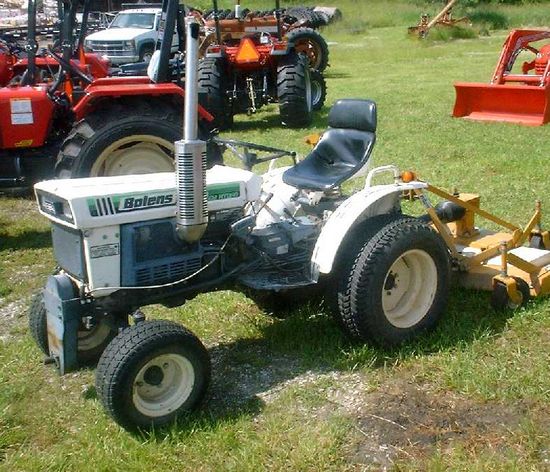

Bolens 613

Production: 1971 - 1972
Type: Lawn Tractors

Contents:

Production

Manufacturer:Bolens
Type:Lawn tractor

Mechanical

Chassis:4x2 2WD
Steering:manual
Brakes:disc
Cab:Open operator station
Transmission:3-speed gear

Electrical

Ground:negative
Battery volts:12

Engine Detail

Briggs & Stratton 146707
gasoline
1-cylinder
air-cooled
Displacement:231 cc 14.11 ci
Bore/Stroke:2.75x2.375 inches 70 x 60 mm
Power:6 hp 4.5 kW
Rated RPM:3600
Starter:electric
Starter volts:12
Oil capacity:1.125 qts 1.1 L

Transmission

Transmission:Peerless
Type:gear
Gears:3 forward and 1 reverse
Clutch:mechanical belt

Dimensions

Wheelbase:40 inches 101 cm
Length:56 inches 142 cm
Width:30 inches 76 cm
Height:36 inches 91 cm
Shiping weight:360 lbs 163 kg
Ground clearance:5 inches 12 cm
