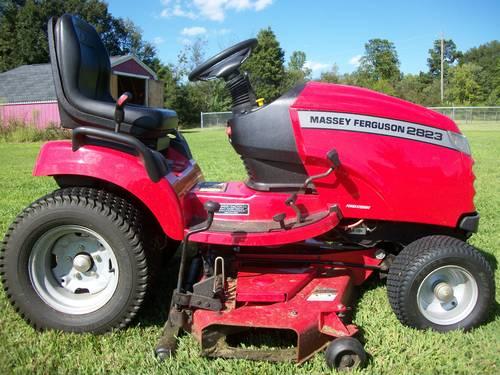

Massey Ferguson 2823
Type: Garden Tractors
Contents:
Production | |
| Distributor | Massey Ferguson |
| Manufacturer | Simplicity |
| Type | Garden tractor |
| Factory | Port Washington, Wisconsin, USA |
Variants | |
| similar Simplicity model | |
| similar AGCO model | |
Mechanical | |
| Chassis | 4x2 2WD |
| Differential lock | mechanical rear |
| Steering | power |
| Cab | Open operator station. |
Tractor hitch | |
| Type | sleeve hitch OptOptional |
Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electro-magnetic |
Electrical | |
| Ground | negative |
| Charging system | alternator |
| Charging amps | 15 |
| Battery CCA | 500 |
| Battery volts | 12 |
Engine Detail | |
| Kohler CV23S | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft V-Twin | |
| Displacement | 673 cc 41.1 ci |
| Bore/Stroke | 3.15x2.64 inches 80 x 67 mm |
| Power (gross) | 23 hp 17.2 kW |
| Compression | 8.5:1 |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 2 qts 1.9 L |
Transmission | |
| Transmission | Tuff Torq K71 |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil capacity | 4.9 qts 4.6 L |
Dimensions | |
| Wheelbase | 53 inches 134 cm |
| Length | 75 inches 190 cm |
| Width | 39 inches 99 cm |
| Height | 50 inches 127 cm |
| Shipping weight | 666 lbs 302 kg |
| Max rear axle | 728 lbs 330 kg |
| Front axle | Cast-iron |
