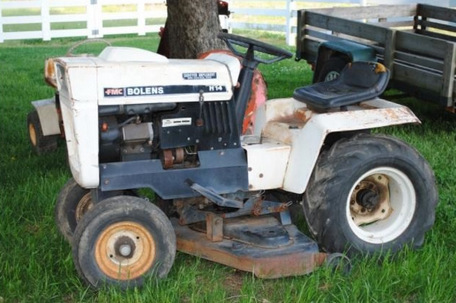

Bolens 3014H HP14
Type: Garden Tractors
Contents:
Production | |
| Manufacturer: | Bolens |
| Type: | Garden tractor |
| Factory: | Port Washington, Wisconsin, USA |
| The Bolens HT14 is the A.J. Foyt signature edition tractor featuring unique paint, racing wheel, and tires. | |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | disc |
| Cab: | Open operator station. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 5 gal 18.9 L |
Power Take-off (PTO) | |
| Mid PTO: | independent |
| Clutch: | electric |
3014H Serial Numbers | |
| Location: | Serial number tag on the rear fender, under the tractor seat, on the left side. |
Electrical | |
| Ground: | negative |
Engine Detail | |
| Briggs & Stratton 400707 | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft horizontally-opposed | |
| Displacement: | 655 cc 40 ci |
| Bore/Stroke: | 3.44x2.16 inches 87 x 55 mm |
| Power: | 14 hp 10.4 kW |
| Starter: | electric |
| Starter volts: | 12 |
| Oil capacity: | 1.5 qts 1.4 L |
Transmission | |
| Transmission: | Eaton 750 |
| Type: | belt-driven hydrostatic |
| Gears: | infinite forward and reverse |
Dimensions | |
| Wheelbase: | 45 inches 114 cm |
| Length: | 69 inches 175 cm |
| Width: | 34.5 inches 87 cm |
| Height: | 42 inches 106 cm |
