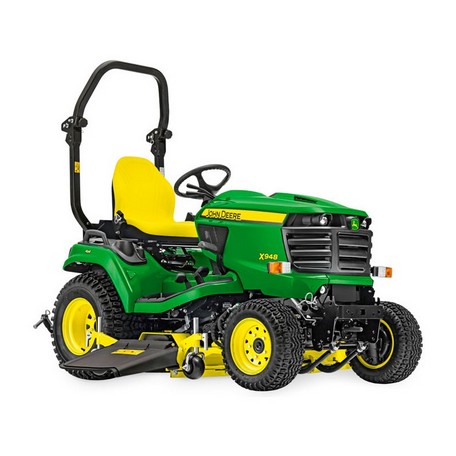

John Deere X948
Type: Garden Tractors
Contents:
Production | |
| Manufacturer: | John Deere |
| Type: | Garden tractor |
| Factory: | Horicon, Wisconsin, USA |
Variants | |
| 2WD 2-wheel steer | |
| 4WD 2-wheel steer | |
| 4WD 4-wheel steer |
Mechanical | |
| Chassis: | 4x4 HFWD 4WD |
| Differential lock: | mechanical rear |
| Steering: | power |
| Brakes: | wet disc |
| Cab: | Two-post folding ROPS. |
| Transmission: | hydrostatic |
Capacity | |
| Fuel: | 5.2 gal 19.7 L |
Hydraulics | |
| Mid valves: | 2 |
| Pump flow: | 5.7 gpm 21.6 lpm |
Power Take-off (PTO) | |
| Rear PTO: | independent*Optional, linked with the mid PTO switch. Mechanical selector sets PTO to front, rear, or both. |
| Rear RPM: | 540 |
| Mid PTO: | independent |
| Clutch: | electro-hydraulic |
| Mid RPM: | 2000 |
Electrical | |
| Ground: | negative |
| Charging system: | alternator |
| Charging amps: | 40 |
Engine Detail | |
| Yanmar 3TNM72 | |
| diesel | |
| 3-cylinder | |
| liquid-cooled horizontal-shaft | |
| Displacement: | 904 cc 55.2 ci |
| Bore/Stroke: | 2.8x2.9 inches 71 x 74 mm |
| Power: | 24.5 hp 18.3 kW |
| Compression: | 23.4:1 |
| Rated RPM: | 3400 |
| Idle RPM: | 1650-3600 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Transmission: | Tuff Torq K914 |
| Type: | shaft-driven hydrostatic |
| Gears: | infinite forward and reverse |
Dimensions | |
| Wheelbase: | 55.7 inches 141 cm |
| Length: | 75 inches 190 cm |
| Width: | 47 inches 119 cm |
| Height (ROPS): | 1982 inches 5034 cm |
| Height (cab): | 74.3 inches 188 cm |
| Weight: | 1132 lbs 513 kg |
| Ground clearance: | 7.1 inches 18 cm |
