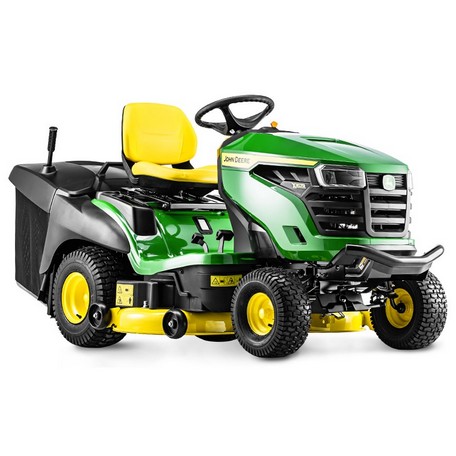

John Deere X167R
Type: Rear-discharge Mowers
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Rear-discharge mower |
| Factory | Greeneville, Tennessee, USA |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
Electrical | |
| Ground | negative |
| Charging amps | 9 |
| Battery volts | 12 |
| Battery Group | U1 |
Engine Detail | |
| Briggs & Stratton 40N877 | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft V-Twin | |
| Displacement | 655 cc 40 ci |
| Bore/Stroke | 2.97x2.89 inches 75 x 73 mm |
| Power | 16.9 hp 12.6 kW |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 2.8 qts 2.6 L |
| Oil change | 50 h |
| Sparkplug gap | 0.030 inches 0.762 mm |
Transmission | |
| Transmission | Tuff Torq K46EE |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil change | sealed unit, owner service is not recommended |
Dimensions | |
| Length | 99.6 inches 252 cm |
| Width | 43.7 inches 110 cm |
| Height | 40.2 inches 102 cm |
| Weight | 542 lbs 245 kg |
