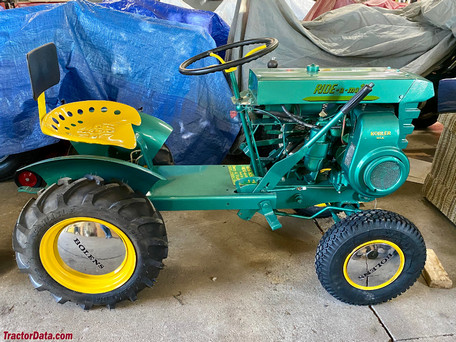

Bolens 230 Ride-A-Matic

Production: 1959

Production
Manufacturer	Bolens
Type	Garden tractor
Original price	$509 (1959 )

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Electrical
Ground	negative
Battery volts	12

Engine Detail
Kohler K161
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement	277 cc 16.94 ci
Bore/Stroke	2.875x2.50 inches 73 x 64 mm
Power	7 hp 5.2 kW
Starter	electric
Starter volts	12

Transmission
Transmission	Versa-matic
Type	belt-driven CVT
Gears	6 forward and 1 reverse
Variable-geometry drive pulley with six positions on the control lever. Interchangeable drive sprockets provides high and low ranges.

Dimensions
Wheelbase	41.5 inches 105 cm
Length	61.5 inches 156 cm
Width	31 inches 78 cm
Height	38 inches 96 cm
Shiping weight	500 lbs 226 kg
Ground clearance	9 inches 22 cm
Front tread	31 inches 78 cm
Rear tread	31 inches 78 cm
