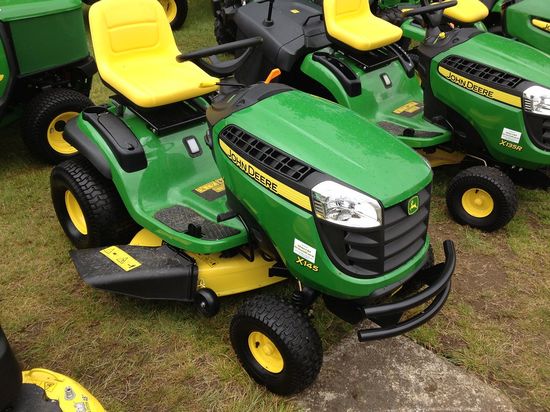

John Deere X145
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Lawn tractor |
| Factory | Greeneville, Tennessee, USA |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Front PTO | independent |
| Clutch | electric |
Electrical | |
| Ground | negative |
| Charging system | regulated circuit |
| Charging amps | 9 |
| Battery volts | 12 |
| Battery Group | BCI U1 |
Engine Detail | |
| Briggs & Stratton 31 | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement | 501 cc 30.6 ci |
| Bore/Stroke | 3.57x3.06 inches 91 x 78 mm |
| Power (gross) | 13.8 hp 10.3 kW |
| Air cleaner | paper and foam |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
| Point gap | 0.012 inches 0.305 mm |
| Intake valve clearance | 0.004 inches 0.102 mm |
| Exhaust valve clearance | 0.006 inches 0.152 mm |
Transmission | |
| Transmission | Tuff Torq T40 |
| Type | hydrostatic |
Dimensions | |
| Length | 68.75 inches 174 cm |
| Width | 51.75 inches 131 cm |
| Height | 44.5 inches 113 cm |
| Weight | 450 lbs 204 kg |
