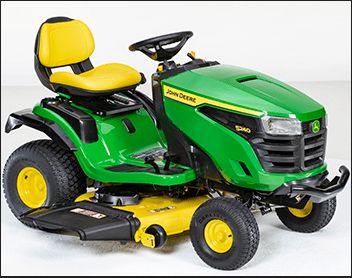

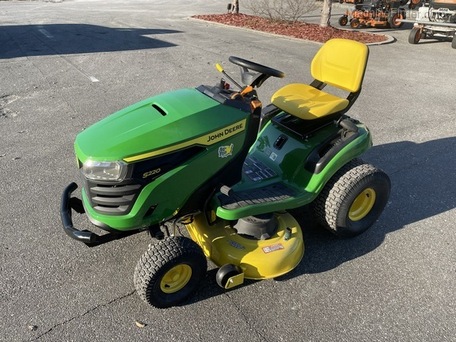

John Deere S220
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer | John Deere |
| Type | Lawn tractor |
| Factory | Greeneville, Tennessee, USA |
| Original price | $2,399 (2021 ) |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Cab | Open operator station. |
Power Take-off (PTO) | |
| Mid PTO | independent |
| Clutch | electric |
Electrical | |
| Ground | negative |
| Charging amps | 15 |
| Battery volts | 12 |
Engine Detail | |
| Briggs & Stratton 44J677 | |
| gasoline | |
| 2-cylinder | |
| air-cooled vertical-shaft V-Twin | |
| Displacement | 724 cc 44.2 ci |
| Bore/Stroke | 3.12x2.89 inches 79 x 73 mm |
| Power | 22 hp 16.4 kW |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.030 inches 0.762 mm |
Transmission | |
| Transmission | Tuff Torq TLT200 |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil change | sealed unit, owner service is not recommended |
Dimensions | |
| Wheelbase | 48.9 inches 124 cm |
| Length | 75 inches 190 cm |
| Height | 45 inches 114 cm |
| Weight | 486 lbs*Weight with 42A mower deck. 220 kg |
