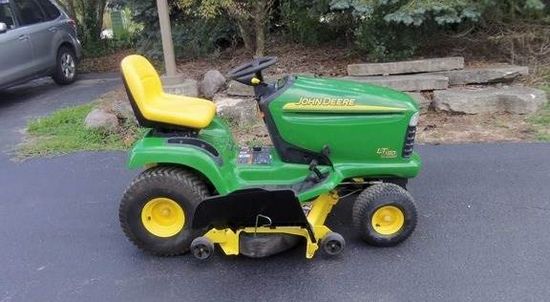

John Deere LT180

Production: 2002 - 2005

Production
Manufacturer	John Deere
Type	Lawn tractor
Factory	Horicon, Wisconsin, USA
Original price	$3,639 (2005 )

Variants

lawn tractor

rear-discharge mower

Mechanical
Chassis	4x2 2WD
Steering	manual sector-and-pinion
Brakes	mechanical disc
Cab	Open operator station. Foam seat with 14-inches of travel.

Power Take-off (PTO)
Mid PTO	independent
Clutch	mechanical

LT180 Serial Numbers
2002	010001
2003	035001
2004	0500001
2005	0530001

Electrical
Ground	negative
Charging system	flywheel alternator
Charging amps	13
Battery CCA	160
Battery volts	12

Engine Detail
Kawasaki FH500V
gasoline
2-cylinder
air-cooled V-Twin
Displacement	493 cc 30.1 ci
Bore/Stroke	2.68x2.68 inches 68 x 68 mm
Power (gross)	17 hp 12.7 kW
Starter volts	12
Sparkplug gap	0.040 inches 1.016 mm

Transmission
Transmission	Tuff Torq K46
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil change	sealed unit, owner service is not recommended

Dimensions
Wheelbase	48 inches 121 cm
Length	68 inches 172 cm
Width	48 inches 121 cm
Height	41 inches 104 cm
Shiping weight	507 lbs 229 kg
