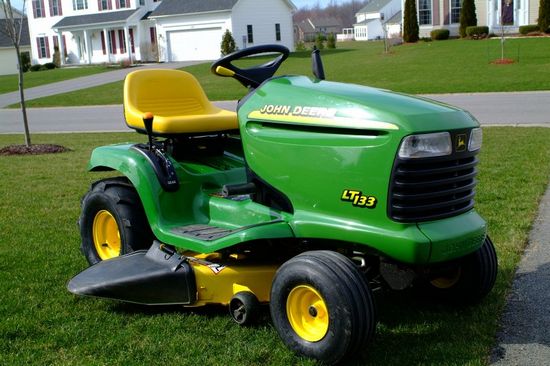

The LT133 was also available in a Motorsports edition with special decals and included a certificate signed by Deere-sponsored NASCAR driver Chad Little.
Mechanical
Chassis
4x2 2WD
Steering
manual
Brakes
disc
Cab
Open operator station.
Power Take-off (PTO)
Mid PTO
independent
Clutch
manual
LT133 Serial Numbers
1998
010001
1999
045001
2000
085001
2001
125001
LT133 Serial Location
On tractor body, below and in front of seat.
Electrical
Ground
negative
Battery CCA
160
Battery volts
12
Engine Detail
Kohler CV13S
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement
398 cc 24.3 ci
Bore/Stroke
3.425x2.638 inches 87 x 67 mm
Power
13 hp 9.7 kW
Starter
electric
Starter volts
12
Sparkplug gap
0.040 inches 1.016 mm
Transmission
Transmission
Dana 4360
Type
belt-driven gear
Gears
5 forward and 1 reverse
Oil change
sealed unit, owner service is not recommended
Gear transmission right right-side shift lever and combination clutch/brake pedal.
