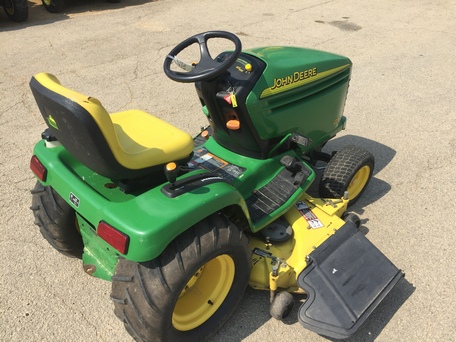

John Deere GX255

Production: 2004 - 2005

Production
Manufacturer	John Deere
Type	Garden tractor
Factory	Horicon, Wisconsin, USA
Original price	$6,099 (2004 )

Mechanical
Chassis	4x2 2WD
Steering	power
Brakes	wet disc
Cab	Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	electric

GX255 Serial Numbers
Location:	Serial number decal on the right side of the frame below engine.
2004	120001
2005	140001

Electrical
Ground	negative
Battery CCA	500
Battery volts	12

Engine Detail
Kawasaki FH601V
gasoline
2-cylinder
air-cooled vertical-shaft V-Twin
Displacement	675 cc 41.2 ci
Bore/Stroke	2.96x2.99 inches 75 x 76 mm
Power	20 hp 14.9 kW
Starter volts	12
Oil capacity	1.8 qts 1.7 L
Oil change	100 h
Sparkplug gap	0.030 inches 0.762 mm

Transmission
Transmission	Tuff Torq K71C
Type	belt-driven hydrostatic
Gears	infinite forward and reverse
Oil capacity	5.0 qts 4.7 L
Oil type	Low-Viscosity Hy-Gard

Dimensions
Wheelbase	49 inches 124 cm
Length	72 inches 182 cm
Width	40.8 inches (without mower) 103 cm
Height	47 inches 119 cm
Shiping weight	607 lbs 275 kg
