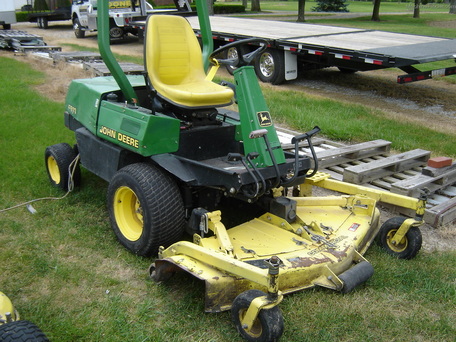

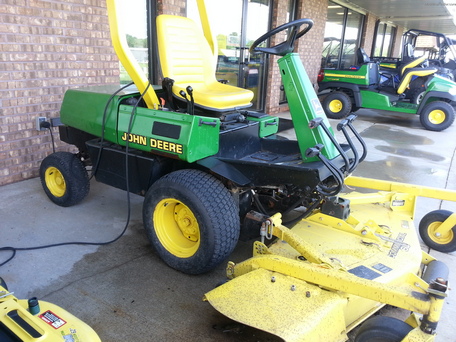

John Deere F911

Production: 1991 - 2000

Production
Manufacturer	John Deere
Type	Front-mount mower
Factory	Horicon, Wisconsin, USA

Mechanical
Chassis	4x2 2WD
Differential lock	mechanical front
Steering	power
Brakes	drum
Cab	Two-post ROPS.

Power Take-off (PTO)
Front PTO	independent
Clutch	electric
Engine RPM	2396@3450

Electrical
Ground	negative
Charging system	alternator
Charging amps	20
Battery CCA	491
Battery volts	12

Engine Detail
Kawasaki FD620D
gasoline
2-cylinder
liquid-cooled horizontal-shaft V-Twin
Displacement	617 cc 37.7 ci
Bore/Stroke	2.99x2.66 inches 76 x 68 mm
Power	22 hp 16.4 kW
Air cleaner	dry
Compression	10.3:1
Rated RPM	3650
Idle RPM	1550-3650
Starter	electric
Starter volts	12
Oil capacity	1.6 qts 1.5 L
Coolant capacity	3.7 qts 3.5 L

Transmission
Transmission	Sundstrand
Type	hydrostatic
Gears	infinite forward and reverse
Oil capacity	4.6 qts 4.4 L

Dimensions
Wheelbase	49.1 inches 124 cm
Length	78 inches (without deck) 198 cm
105.7 inches (60-inch deck) 268 cm
115.5 inches (72-inch deck) 293 cm
Width	42.8 inches 108 cm
Shiping weight	1382 lbs 626 kg
Ground clearance	5 inches 12 cm
