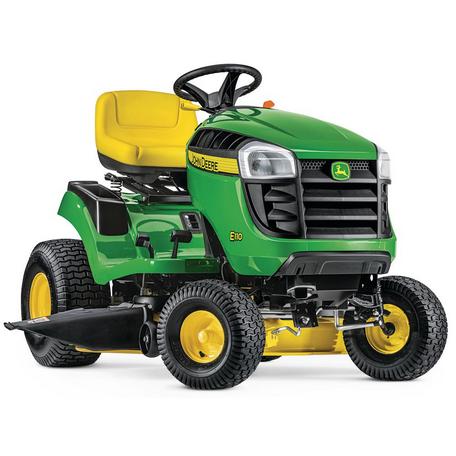

John Deere E110
Contents:
E110 Serial Location | |
| Serial number on the left side of the John Deere E110, under the fender by the rear wheel. |
Electrical | |
| Ground | negative |
| Charging amps | 9 |
| Battery CCA | 300 |
| Battery volts | 12 |
Engine Detail | |
| Briggs & Stratton 33R877 | |
| air gasoline | |
| 1-cylinder | |
| vertical-shaft | |
| Displacement | 539 cc 32.93 ci |
| Bore/Stroke | 3.701x3.062 inches 94 x 78 mm |
| Power (gross) | 19 hp 14.2 kW |
| Starter | electric |
| Starter volts | 12 |
| Oil capacity | 1.5 qts 1.4 L |
| Sparkplug gap | 0.030 inches 0.762 mm |
Transmission | |
| Transmission | Tuff Torq TL200 |
| Type | belt-driven hydrostatic |
| Gears | infinite forward and reverse |
| Oil change | sealed unit, owner service is not recommended |
Dimensions | |
| Wheelbase | 48.9 inches 124 cm |
| Length | 68.8 inches 174 cm |
| Height | 40.2 inches 102 cm |
| Shiping weight | 386 lbs 175 kg |
| Front axle | Cast-iron |
