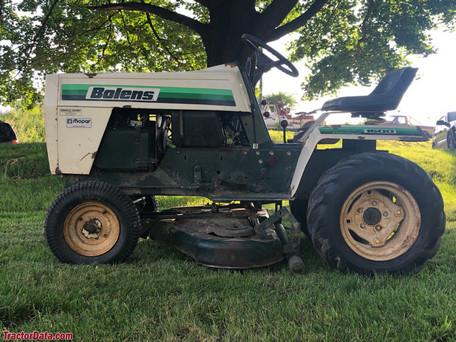

Bolens 1600G 1667

Production: 1983 - 1987

Production
Manufacturer	Bolens
Type	Garden tractor

Variants

gear

hydrostatic

Mechanical
Chassis	4x2 2WD
Steering	manual
Brakes	disc
Cab	Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Front PTO	independent
Clutch	electric

Electrical
Ground	negative
Battery volts	12

Engine Detail
Briggs & Stratton 402437
gasoline
2-cylinder
air-cooled horizontal-shaft
Displacement	655 cc 40 ci
Bore/Stroke	3.437x2.156 inches 87 x 55 mm
Power (gross)	16 hp 11.9 kW
Air cleaner	dry with foam precleaner
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.75 qts 1.7 L
Sparkplug	Champion J-8
Sparkplug gap	0.030 inches 0.762 mm

Transmission
Transmission	Peerless
Type	gear
Gears	4 forward and 1 reverse
Oil capacity	1.5 qts 1.4 L
Oil type	EP 90 Gear Lube

Dimensions
Wheelbase	49 inches 124 cm
Length	70.75 inches 179 cm
Width	36.25 inches 92 cm
Height	44 inches 111 cm
Weight	703 lbs 318 kg
Ground clearance	7 inches 17 cm
