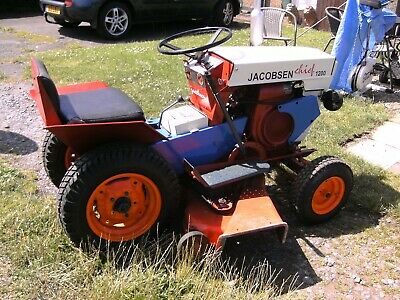

Jacobsen 1200 53217

Production: 1977 - 1980

Production
Manufacturer	Jacobsen (a part of Textron)
Type	Garden tractor
Factory	Racine, Wisconsin, USA

Mechanical
Chassis	4x2 2WD
Steering	manual
Brakes	mechanical band
Cab	Open operator station.

Tractor hitch
Type	sleeve hitch OptOptional

Power Take-off (PTO)
Rear PTO	independent OptOptional
Rear RPM	3300
Front PTO	independent
Clutch	electric

Electrical
Ground	negative
Battery volts	12

Engine Detail
Kohler K301AQS
gasoline
1-cylinder
air-cooled horizontal-shaft
Displacement	476 cc 29.07 ci
Bore/Stroke	3.375x3.25 inches 86 x 83 mm
Power (gross)	12 hp 8.9 kW
Air cleaner	dry
Rated RPM	3600
Starter	electric
Starter volts	12
Oil capacity	1.5 qts 1.4 L
Oil change	30 h

Transmission
Type	belt-driven gear
Gears	4 forward and 1 reverse
Clutch	idler pulley

Dimensions
Wheelbase	46 inches 116 cm
Width	38 inches 96 cm
Height (steering wheel)	41 inches 104 cm
Height (hood)	37 inches 93 cm
Clearance (front axle)	7.25 inches 18 cm
Clearance (rear axle)	8 inches 20 cm
