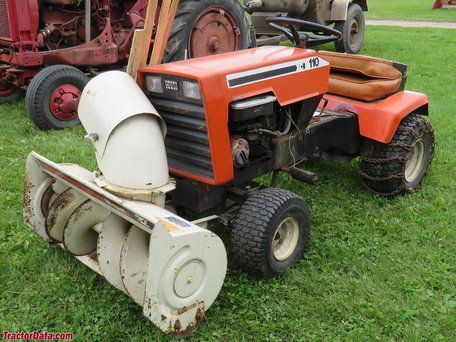

J.I. Case 110 XC
Type: Lawn Tractors
Contents:
Production | |
| Manufacturer: | J.I. Case |
| Type: | Lawn tractor |
| Factory: | Winneconne, Wisconsin, USA |
| Original price: | $1,928 (1981 ) |
Mechanical | |
| Chassis: | 4x2 2WD |
| Steering: | manual |
| Brakes: | mechanical disc |
| Cab: | Open operator station. |
| Transmission: | 3-speed gear |
Capacity | |
| Fuel: | 1 gal 3.8 L |
Power Take-off (PTO) | |
| Mid PTO: | independent |
| Clutch: | mechanical idler pulley |
110 XC Serial Numbers | |
| Location: | Serial number plate on the dashboard of the Case 110 XC, below the steering column. |
Electrical | |
| Ground: | negative |
Engine Detail | |
| Briggs & Stratton 220707 | |
| gasoline | |
| 1-cylinder | |
| air-cooled vertical-shaft | |
| Displacement: | 360 cc 21.97 ci |
| Bore/Stroke: | 3.4375x2.625 inches 87 x 67 mm |
| Power: | 10 hp 7.5 kW |
| Compression: | 6.2:1 |
| Rated RPM: | 3500 |
| Starter: | electric |
| Starter volts: | 12 |
Transmission | |
| Transmission: | Peerless 600 |
| Type: | belt-driven gear |
| Gears: | 3 forward and 1 reverse |
Dimensions | |
| Wheelbase: | 42 inches 106 cm |
| Length: | 57.25 inches 145 cm |
| Width: | 32.25 inches 81 cm |
| Height (steering wheel): | 37.875 inches 96 cm |
| Height (hood): | 31.5 inches 80 cm |
| Weight: | 317 lbs 143 kg |
| Clearance (rear axle): | 5.75 inches 14 cm |
| Front tread: | 23.4 inches 59 cm |
| Rear tread: | 23.25 inches 59 cm |
