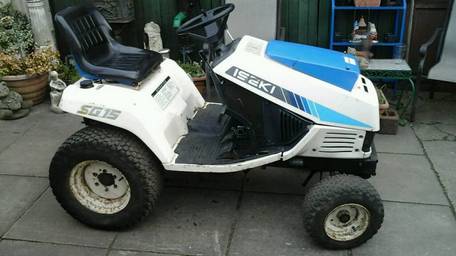

Iseki SG15

Production: 1999

Production
Manufacturer:	Iseki
Type:	Garden tractor

Mechanical
Chassis:	4x2 2WD
Steering:	manual
Brakes:	mechanical dry shoe
Transmission:	hydrostatic

Capacity
Fuel:	2.9 gal 11.0 L

Hydraulics
Pressure:	440 psi 30.3 bar
Total flow:	2.6 gpm 9.8 lpm

Electrical
Ground:	negative
Charging system:	alternator
Charging amps:	8.5

Engine Detail
Iseki E262
diesel
2-cylinder
Displacement:	619 cc 37.8 ci
Bore/Stroke:	2.91x2.835 inches 74 x 72 mm
Power:	15 hp 11.2 kW
Starter type:	electric
Oil capacity:	2.6 qts 2.5 L
Intake valve clearance:	0.010 inches 0.254 mm
Exhaust valve clearance:	0.010 inches 0.254 mm

Transmission
Type:	hydrostatic
Gears:	infinite forward and reverse
Oil capacity:	6.3 qts 6.0 L

Dimensions
Length:	66.5 inches 168 cm
Width:	40.2 inches 102 cm
Height (steering wheel):	44.9 inches 114 cm
Shipping:	772 lbs 350 kg
