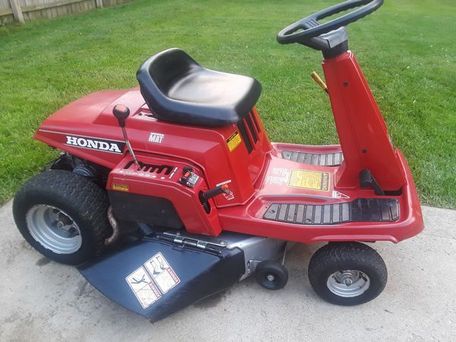

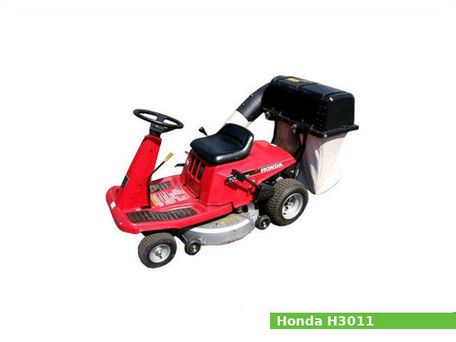

Honda H3011

Production: 1989 - 1992

Production
Manufacturer	Honda
Type	Riding lawn mower

Variants
H3011	gear
H3011H	hydrostatic

Mechanical
Chassis	4x2 2WD
Steering	manual
Cab	Open operator station.

Power Take-off (PTO)
Mid PTO	independent
Clutch	manual

Electrical
Ground	negative
Battery volts	12

Engine Detail
Honda GVX340K
gasoline
1-cylinder
air-cooled vertical-shaft
Displacement	337 cc 20.6 ci
Bore/Stroke	3.23x2.52 inches 82 x 64 mm
Power	11 hp 8.2 kW
Starter	electric
Starter volts	12
Oil capacity	1.2 qts 1.1 L
Sparkplug	NGK BPR5ES
Sparkplug gap	0.030 inches 0.762 mm

Dimensions
Wheelbase	43.3 inches 109 cm
Length	61 inches 154 cm
Height (steering wheel)	39.4 inches 100 cm
Gear Weight	364 lbs 165 kg
Hydro Weight	400 lbs 181 kg
Front tread	22.4 inches 56 cm
Rear tread	26 inches 66 cm
