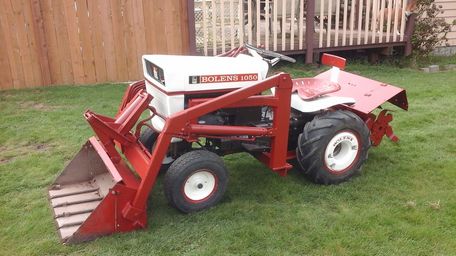

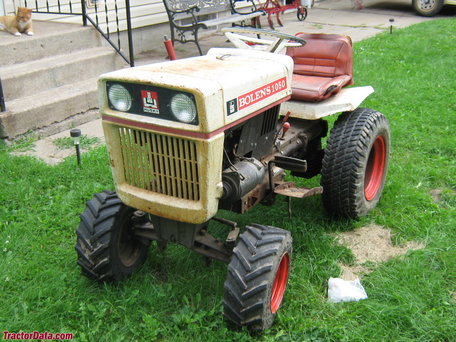

Bolens 1050
Contents:
1050 Serial Location | |
| Serial number plate on the right side of the Bolens 1050 tractor frame, near the clutch/brake pedal. |
Electrical | |
| Ground | negative |
| Battery volts | 12 |
Engine Detail | |
| Wisconsin TR-10D | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| The Wisconsin TR-10D was used in the Bolen 1050 only during the first production year, 1966. Tractors with the TR-10D carried model code 192-01. | |
| Displacement | 331 cc 20.2 ci |
| Bore/Stroke | 3.125x2.625 inches 79 x 67 mm |
| Power | 10 hp 7.5 kW |
| Air cleaner | dry |
| Rated RPM | 3800 |
| Starter volts | 12 |
| Oil capacity | 1 qts 0.9 L |
| Oil change | 50 h |
| Sparkplug gap | 0.025 inches 0.635 mm |
Transmission | |
| Type | gear |
| Gears | 6 forward and 2 reverse |
| Three gears, plus reverse, in two ranges. Tractor must be stopped and clutch/brake pedal depressed to shift. | |
Dimensions | |
| Wheelbase | 43 inches 109 cm |
| Length | 63 inches 160 cm |
| Width | 34 inches 86 cm |
| Height | 40 inches 101 cm |
| Shiping weight | 645 lbs 292 kg |
| Ground clearance | 7 inches 17 cm |
