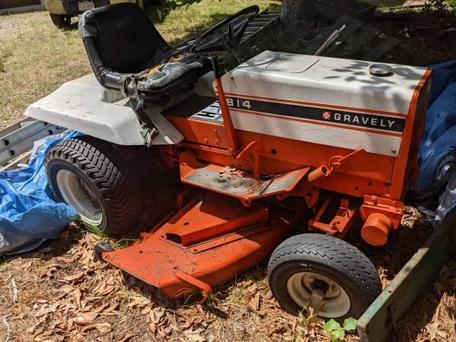

Gravely 814
Type: Garden Tractors
Contents:
Production | |
| Manufacturer | Gravely |
| Type | Garden tractor |
Mechanical | |
| Chassis | 4x2 2WD |
| Steering | manual |
| Cab | Open operator station. |
814 Serial Numbers | |
| Location: | In front of, and below, air cleaner. |
Electrical | |
| Ground | negative |
| Battery volts | 12 |
| Battery AH | 43 |
| Battery Group | 22F |
Engine Detail | |
| Kohler K321 | |
| gasoline | |
| 1-cylinder | |
| air-cooled | |
| Displacement | 512 cc 31.27 ci |
| Bore/Stroke | 3.25x3.50 inches 83 x 89 mm |
| Power | 14 hp 10.4 kW |
| Rated RPM | 3600 |
| Starter | electric |
| Starter volts | 12 |
| Sparkplug gap | 0.025 inches 0.635 mm |
| Intake valve clearance | 0.009 inches 0.229 mm |
| Exhaust valve clearance | 0.018 inches 0.457 mm |
Transmission | |
| Type | shaft-driven gear |
| Gears | 8 forward and 4 reverse |
| Oil capacity | 6 qts 5.7 L |
| Oil type | SAE30 |
Dimensions | |
| Length | 75.5 inches 191 cm |
| Width | 36.25 inches 92 cm |
| Height | 43 inches 109 cm |
| Shiping weight | 900 lbs 408 kg |
