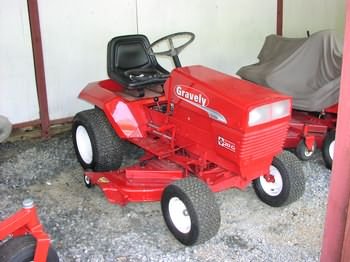

Gravely 24-G

Production: 1989 - 2001

Production
Manufacturer	Gravely
Type	Garden tractor

Mechanical
Chassis	4x2 2WD
Steering	power
Cab	Open operator station.

Electrical
Ground	negative
Charging amps	20
Battery volts	12

Engine Detail
Onan P224
gasoline
2-cylinder
air-cooled horizontal-shaft horizontally-opposed
Displacement	978 cc 59.7 ci
Bore/Stroke	3.56x3.00 inches 90 x 76 mm
Power	24 hp 17.9 kW
Rated RPM	3300
Starter volts	12
Oil capacity	3 qts 2.8 L

Transmission
Type	shaft-driven gear
Gears	8 forward and 4 reverse
Oil capacity	5.5 qts 5.2 L

Dimensions
Wheelbase	60 inches 152 cm
Length	90.2 inches 229 cm
Width	46.4 inches 117 cm
Height	51.5 inches 130 cm
Weight	963 lbs 436 kg
