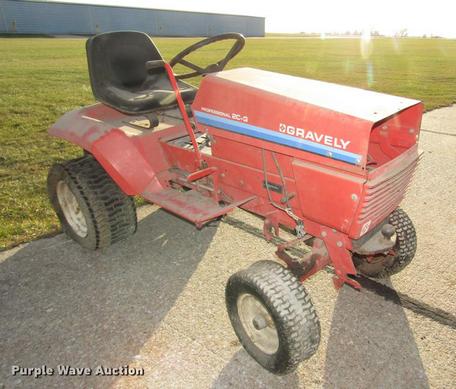

Gravely 20-G

Production: 1988 - 2001

Production
Manufacturer	Gravely
Type	Garden tractor

Mechanical
Chassis	4x2 2WD
Steering	manual
Brakes	mechanical band
Cab	Open operator station.

Electrical
Ground	negative
Charging amps	15
Battery volts	12
Battery AH	42
Battery Group	22F

Engine Detail
Kohler M20S
gasoline
2-cylinder
air-cooled
Displacement	770 cc 46.98 ci
Bore/Stroke	3.125x3.062 inches 79 x 78 mm
Power	20 hp 14.9 kW
Rated RPM	3600
Starter volts	12
Oil capacity	1.5 qts 1.4 L

Transmission
Type	shaft-driven gear
Gears	8 forward and 4 reverse
Oil capacity	6 qts 5.7 L
Oil type	SC10W-30

Dimensions
Wheelbase	52.3 inches 132 cm
Length	82 inches 208 cm
Width	43.2 inches 109 cm
Height	51 inches 129 cm
Weight	883 lbs 400 kg
