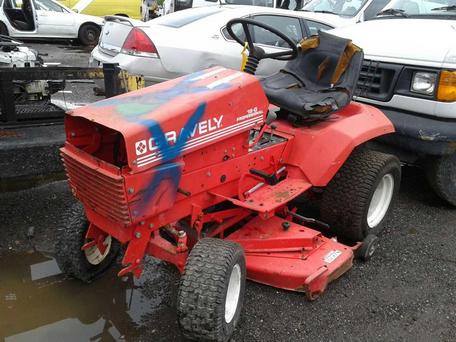

Gravely 18-G

Production: 1988 - 2001
Type: Garden Tractors

Contents:

Production

ManufacturerGravely
TypeGarden tractor

Mechanical

Chassis4x2 2WD
Steeringmanual
Brakesmechanical band
CabOpen operator station.

Electrical

Groundnegative
Charging amps15
Battery volts12
Battery AH42
Battery Group22F

Engine Detail

Kohler M18S
gasoline
2-cylinder
air-cooled
Displacement691 cc 42.18 ci
Bore/Stroke3.125x2.750 inches 79 x 70 mm
Power18 hp 13.4 kW
Rated RPM3600
Starter volts12
Oil capacity1.5 qts 1.4 L

Transmission

Typeshaft-driven gear
Gears8 forward and 4 reverse
Oil capacity6 qts 5.7 L
Oil typeSC10W-30

Dimensions

Wheelbase52.3 inches 132 cm
Length82 inches 208 cm
Width43.2 inches 109 cm
Height51 inches 129 cm
Weight863 lbs 391 kg
